Alternativas quirúrgicas en roturas irreparables del manguito posterosuperior

Introduction

Irreparable posterosuperior massive rupture is defined as rupture affecting the tendons of the supra- and infraspinatus (Collin type D)^(1,2,3), and is associated to retraction of these tendons at glenoid level (Patte 3)⁽⁴⁾ with fatty infiltration and high grade muscle atrophy (Goutalier 3-4)⁽⁵⁾. Ruptures of this kind usually manifest clinically in the form of important shoulder dysfunction, including loss of mobility and pain. In addition, lack of integrity of the posterosuperior rotator cuff can give rise to eccentric loading of the humeral head over the glenoid cavity and acromion, with wear and consequent arthropathy secondary to rotator cuff rupture⁽⁶⁾.

In order to revert the clinical manifestations and improve patient quality of life, posterosuperior massive cuff ruptures that fail to improve with conservative management usually require surgical procedures such as debridement with tenotomy / tenodesis of the biceps, partial repairs, the placement of a subacromial balloon, superior capsular reconstruction (SCR), tendon transfers or reverse shoulder replacement. Deciding which treatment option is best for a given patient may prove challenging. Therefore, in order to secure good results, each shoulder surgeon should have adequate knowledge of the indications, functioning and clinical outcomes of the different therapeutic modalities available⁽⁷⁾. In this regard, the present study describes treatment with the subacromial balloon, superior capsular reconstruction and its bio-SCR variant.

Subacromial balloon

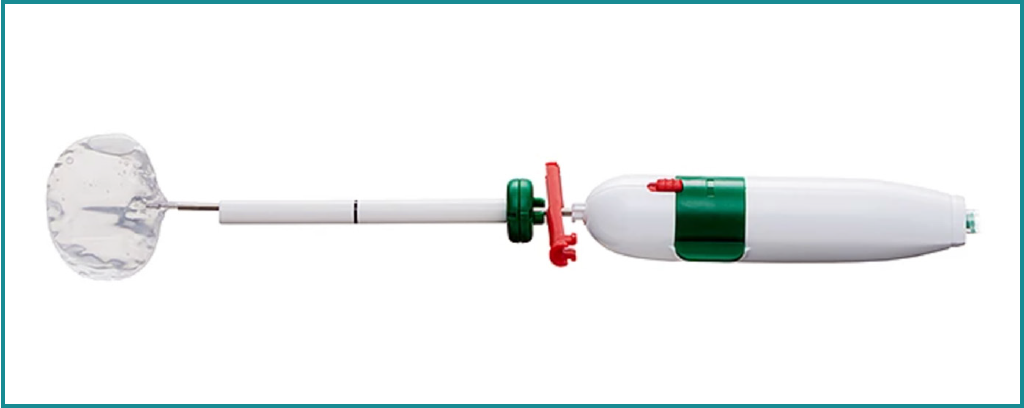

In 2012, Savarese et al.⁽⁸⁾ published the technical description of the arthroscopic placement of a biodegradable balloon in the subacromial space (Figure 1)⁽⁹⁾. Following insufflation, the balloon acts as a spacer, avoiding superior migration of the humeral head (Figure 2)⁽⁸⁾. In irreparable cuff rupture, it has been reported that the balloon can restore glenohumeral biomechanics and improve shoulder function thanks to a descent of the humeral head and its centralization with respect to the glenoid cavity, restoration of the torque generated by the subscapularis and teres minor, and an increase in tension of the deltoid muscle^(10,11,12). Lobao et al., through the simulation of irreparable cuff rupture in cadaver models, were able to demonstrate that the subacromial balloon appears to restore glenohumeral biomechanics during the immediate postoperative period⁽¹²⁾.

[[{"fid":"6750","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"1":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"1"}}]]

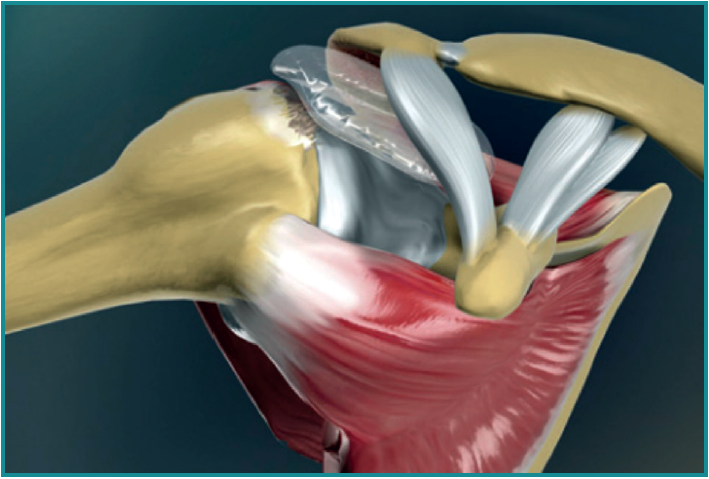

The biodegradable balloon is composed of a polylactic compound and caprolactone copolymer with a half-life of about 12 months, and its weight is reduced to 60%, with a return to its initial size 6 months after placement⁽¹³⁾. A magnetic resonance imaging study showed that 24 months after implantation, only a thick fibrotic layer could be distinguished between the humeral head and the acromion⁽¹⁴⁾. Such fibrosis is a consequence of the inflammatory response around the implant and appears to be responsible for the fact that the restoration of glenohumeral function persists after disintegration of the balloon^(14,15). To date, the histological studies have not evidenced the appearance of complications due to the chronic inflammation and/or systemic toxicity of the device⁽¹⁶⁾.

[[{"fid":"6751","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"2":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"2"}}]]

During placement of the subacromial balloon, it is not advisable to perform an extensive bursectomy in order to avoid possible displacement of the balloon in the subacromial space. Debridement must be performed of all the soft tissue immediately above the supraglenoid tubercle in order to perform the required measurement. In some cases, we may need to add tenotomy / tenodesis of the long portion of the biceps⁽¹⁷⁾. The balloon is inserted through the lateral portal, with the medial portion located above the superior glenoid margin (and remnant cuff, if any) and the lateral portion beneath the acromion, without extending beyond its lateral border. Once in the correct position, the device is insufflated with the volume of saline solution recommended by the manufacturer. Filling the balloon to above the recommended volume may result in increased tension of the deltoid muscle, pain, and an increased risk of displacement of the device. In this regard, if it is not possible to insufflate the entire volume, it is advisable for the balloon to be left less inflated in order to avoid such complications⁽⁸⁾.

No consensus has been reached to date regarding the definitive indications of the technique, mainly because of the heterogeneity of the different studies in terms of the conditions for placing the subacromial balloon, and the lack of long term studies and/or controlled trials⁽¹⁸⁾.

This surgical technique was initially described in patients showing no improvement with conservative management, and who met one of the following requirements⁽⁸⁾:

1. Isolated irreparable rupture of the tendon of the supraspinatus.
2. Irreparable rupture of the tendon of the supraspinatus associated to reparable rupture of the tendon of the infraspinatus.
3. Irreparable posterosuperior rupture of the rotator cuff, with an intact or reparable ruptured tendon of the subscapularis.

In order to guarantee the effectiveness of the surgical technique, the tendon of the subscapularis and the tendon of the teres minor must be normally functioning and intact⁽¹⁸⁾. In this way we can guarantee restoration of the rotational torque of the humeral head with the glenoid cavity. Nevertheless, other authors indicate that in order to ensure the recovery of active flexion of the arm, these tendons, if ruptured, must be repaired first before the spacer is implanted⁽¹⁷⁾.

[[{"fid":"6752","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"3":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"3"}}]]

Furthermore, subsequent studies have shown that the best outcomes can be expected in those patients with an intact and/or partially reparable tendon of the infraspinatus⁽¹⁸⁾.

Thus, taking into account the current literature and the recommendations of the experts, it seems that the ideal patient for placement of the subacromial spacer balloon is an individual failing to respond to conservative management, with massive rotator cuff rupture, intact tendons of the subscapularis and teres minor, a preferably reparable infraspinatus, with complete passive mobility and no glenohumeral arthropathy^(18,19). Burnier et al., on the basis of a systematic review conducted in 2019, added that a low functional demand was another feature to be taken into account in defining the ideal patient for this technique⁽²⁰⁾.

In contrast, there are greater contraindications for the use of this technique in irreparable massive cuff ruptures⁽¹⁷⁾. These are:

• Patients allergic to any of the components of the device.
• Active infection.
• Glenohumeral arthropathy. Patients with erosive lesions of the joint surfaces will experience persistence of the pain and limited mobility secondary to the formation of osteophytes.
• Deltoid muscle dysfunction. The deltoid muscle becomes the main elevator of the arm after placement of the subacromial balloon; it therefore must exhibit normal function in order to afford good outcomes.
• Pseudo-paralysis of the affected extremity. The poor results reported by different authors in patients with pseudo-paralytic shoulder have presently caused this latter condition to be regarded as a contraindication to the use of the technique^(17,18).

The most frequently reported complications are persistent pain and displacement of the device. Reconversion to reverse shoulder replacement is the most common type of revision surgery^(6,19). Ruiz Iban et al., in their series of 16 cases with a minimum follow-up of two years, reported reconversion to reverse shoulder replacement in one out of every three patients⁽²¹⁾.

[[{"fid":"6753","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"4":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"4"}}]]

Twelve years after its introduction on the European market, there is not enough scientific evidence to confirm that the subacromial balloon is an effective treatment for dealing with irreparable massive ruptures. The study designs are very heterogeneous, and most of the publications present low level evidence (III-IV); it is therefore difficult to draw firm conclusions^(22,23). For this reason, in the United Kingdom, its use has been restricted to the research setting only⁽¹⁹⁾. A randomized, double-blind multicenter study has recently been published⁽²⁴⁾ reporting that arthroscopic debridement is superior to this same technique combined with use of a subacromial balloon. Thus, with high quality evidence, the authors conclude that the subacromial balloon is not an effective treatment, may prove harmful, and is not cost effective. They consequently exclude this technique as a surgical treatment option for patients with irreparable rotator cuff rupture.

Superior capsular reconstruction

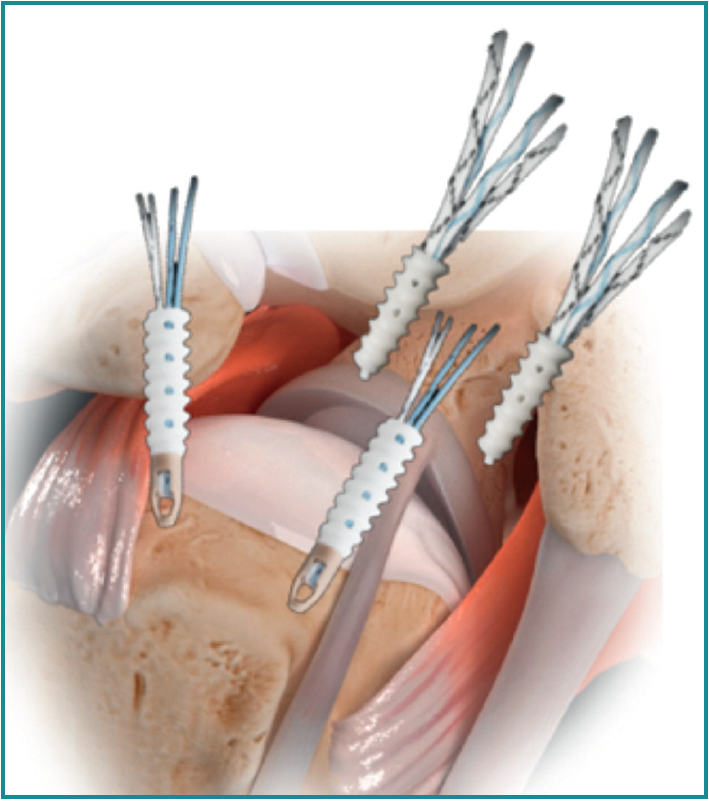

The anatomical structure of the superior glenohumeral capsule was first described by Clark et al. in 1990⁽²⁵⁾, defining it as a deep extension of the coracohumeral ligament. It is a fine fibrous structure inserted in the upper part of the glenoid neck and laterally in the greater tuberosity, and may occupy the entire footprint of the tendon of the supraspinatus. It is intimately related to the "rotator cable" (defined by Burkhart et al.) or humeral semicircular ligament⁽²⁶⁾. Pouliart et al. postulated that the superior capsule plays a "safety" role in the anchoring of the rotator cable and in maintaining its function⁽²⁷⁾. Patients with massive rotator cuff rupture present a defect in the superior capsule and in the rotator cable. This results in reverse fulcrum loss and loss of joint stability, giving rise to ascent of the humeral head during abduction which, over time, leads to secondary osteoarthrotic changes.

[[{"fid":"6754","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"5":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"5"}}]]

Mihata et al.⁽²⁸⁾, in a study in cadavers, postulated that reconstructing the superior capsule with a graft anchored medially in the glenoid cavity and laterally in the tuberosity would be able to restore joint stability and thus shoulder function (Figure 2).

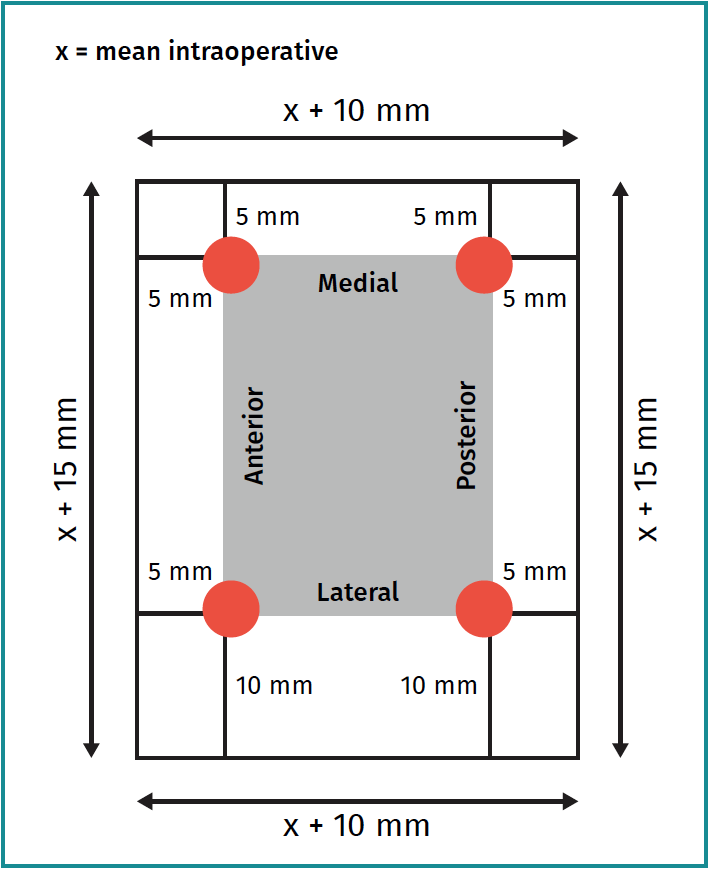

The surgical technique is performed arthroscopically⁽²⁹⁾. The first step involves extensive debridement and bursectomy of the entire subacromial space to facilitate visualization and expand the working space. Then, we place the first four implants, two at the upper level of the glenoid neck and the other two at medial level of the footprint of the supraspinatus (previously prepared) (Figure 3). This step is crucial for performing the measurements of the distances between anchorings (anterior, posterior, medial and lateral distance) and for calculation of the final size of the graft (Figure 4). Once the definitive graft has been obtained with the calculated size, and before inserting it in the subacromial space, the latter must be perforated with four orifices at a pre-established distance in order to retrieve the extremities of the implants through each of them. Then, we interconnect two ends of the medial anchorings (one end for each anchoring). At this point we insert the graft into the subacromial space, pulling on the two medial extremities that have not been interconnected, and which act as a descending pulley mechanism. To complete positioning of the graft at lateral level, a double row transosseous-equivalent (TOE) placement is carried out with two new implants - preferably knotless implants. Most surgeons perform this final fixation of the graft with the shoulder in abduction of about 10-45º⁽³⁰⁾, though despite the different studies carried out in this regard^(31,32), there is not enough evidence to recommend a concrete abduction angle for fixing the graft.

The recommended last step before completing surgery is to perform convergence sutures between the graft and the tendon of the infraspinatus, since this has been suggested to favor increased stability⁽³³⁾ and better integration of the graft⁽³⁴⁾ - the latter being one of the most important factors for improving the middle and long term outcomes^(35,36) (Figure 5).

It is indicated in those patients that present symptomatic irreparable rupture of the tendon of the supraspinatus, and where conservative management has failed and all the following characteristics are met:

• Intact tendon of the infraspinatus or with reparable damage.
• Absence or minimum presence of glenohumeral osteoarthrosis (Hamada 1 or 2)⁽³⁷⁾.
• Intact tendon of the subscapularis or with reparable damage.
• Normally functioning deltoid muscle.
• No severe osteoporosis.

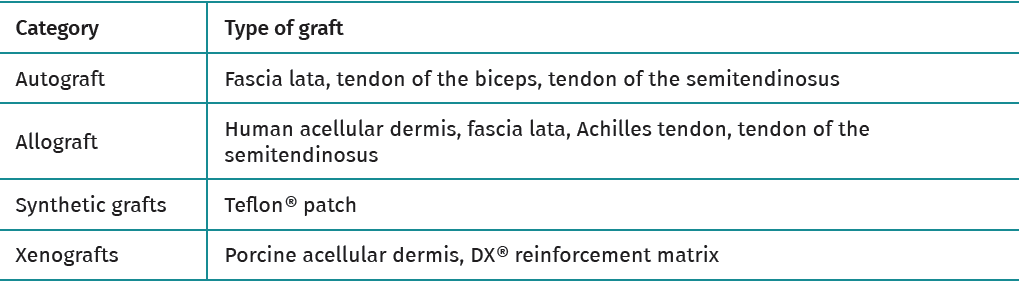

To secure improved results with the surgical technique, we must be very careful in selecting the patients, and furthermore, in this technique, the characteristics of the graft also appear to play an important role in terms of the outcomes obtained. The initial technique was described using autologous fascia lata ⁽²⁸⁾, though at present there are studies that have used different heterologous acellular dermal matrix grafts, as well as different autologous grafts such as tendon of the semitendinosus, the Achilles tendon, or the long portion of the biceps (Table 1). Independently of the graft used, it should be at least 6 mm thick^(30,38) in order to guarantee good middle and long term outcomes.

[[{"fid":"6755","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"6":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"6"}}]]

The studies published up until 2020, including systematic reviews^{(39,40,41,42,43)}, concluded that the SCR technique, at least over the short term, affords significant improvement in terms of strength and mobility, with the reduction of pain. Series have been published that report rates in excess of 90% of pseudo-paralysis reversion ^(44,45) and patient reincorporation to previous physical and working activity⁽⁴⁶⁾. These preliminary results, the introduction of dermal allografts, improvements of the surgical technique, etc., have caused this procedure to increase exponentially in popularity among shoulder surgeons. Some authors have referred to this popularity as being the result of pressure on the part of the industry, and of collective surgical enthusiasm⁽⁴⁷⁾. The fact is that to date, there have been no randomized prospective studies comparing SCR with techniques such as debridement, biceps tenotomy or partial repair. Most of the published articles can be classified as technical papers, articles on biomechanical principles, observational studies or reviews of observational studies. This lack of high level evidence has been cited as a cause underlying the decrease in the number of superior capsular reconstructions made. Other mentioned reasons are the lack of healing of the graft and the absence of patient perceived benefit capable of justifying the cost of the technique⁽⁴⁸⁾.

Transpositioning of the biceps for biological capsule reconstruction (bio-SCR)

As commented above, integration and healing of the graft with the receptor bone is one of the most important aspects for obtaining good outcomes with SCR over the middle and long term^(35,36). Recently, a number of authors have described the use of the long portion of the biceps (LPB) as autograft in SCR^{(49,50,51,52)}. Furthermore, the use of this autograft in comparison with the initial technique of Mihata et al.⁽²⁸⁾ offers a series of advantages such as the disappearance of morbidity in the donor zone, and an apparent decrease in surgery time and the risk of infection⁽⁵³⁾. When compared with the use of allografts, xenografts and synthetic grafts, SCR with biceps transposition is a less demanding technique, and reduces the costs of surgery and the risk of transmissible diseases^(54,55).

The indications of bio-SCR are basically the same as those of the conventional SCR technique, though the following is moreover needed:

• An intact tendon of the long portion of the biceps and its insertion.
• Patients with low functional or strength demands.

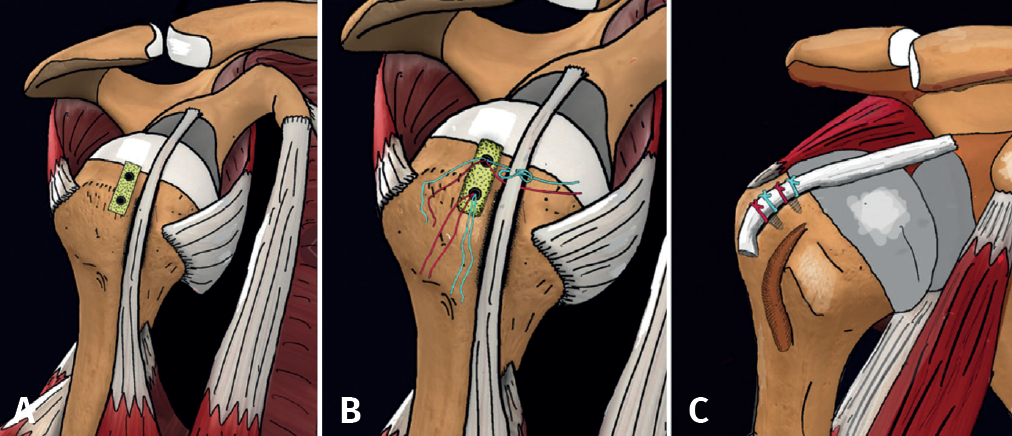

During the arthroscopic subacromial step of the bio-SCR technique, it is essential to confirm the integrity of the long portion of the biceps. Once this has been confirmed, we prepare the footprint. Two anchorings are placed with sutures, one at the most medial aspect of the footprint and the other at the most lateral aspect (Figure 6A). A curved soft tissue penetrating device is used to perform a loop through the long head of the biceps, with fixation to the anchoring with 4-5 knots. This first knotting step fixes the biceps in its new location, and with the second thread emerging from the anchoring we perform another knot that envelops the tendon of the long head of the biceps to secure greater fixation and stability in the insertion bed (Figure 6B). The same process is carried out with the threads of the lateral anchoring of the footprint in the greater tuberosity. Then tenotomy of the long portion of the biceps distal to the knot of the second anchoring is carried out (Figure 6C)⁽⁵⁶⁾.

[[{"fid":"6756","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"7":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"7"}}]]

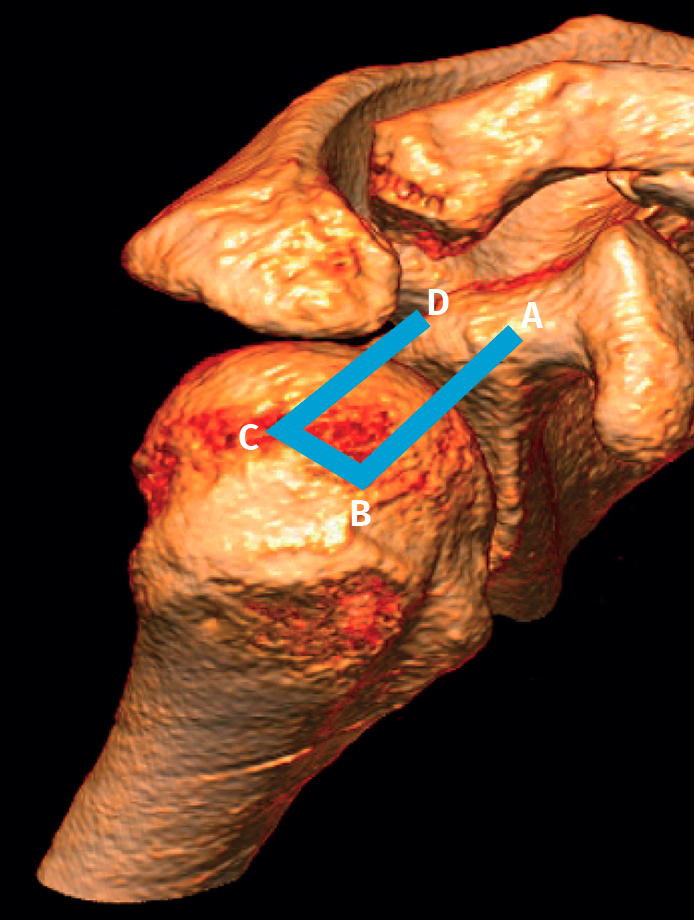

Fandridis et al.⁽⁵⁷⁾ described bio-SCR with bifascicular fixation of the biceps using the box technique (Figure 7); from the anchoring in the greater tuberosity, a circular twist of the tendon is applied, inserting it again with another anchoring over the upper margin of the glenoid cavity. In order to do this, we need to use a small subpectoral approach to secure greater length with the autograft.

[[{"fid":"6757","view_mode":"default","fields":{"format":"default","alignment":""},"type":"media","field_deltas":{"8":{"format":"default","alignment":""}},"link_text":null,"attributes":{"class":"media-element file-default","data-delta":"8"}}]]

To date, the studies in cadavers and biomechanical models have shown that the bio-SCR technique appears to be biomechanically equivalent and potentially stronger in centering the humeral head in the glenoid cavity compared with conventional SCR^(58,59). These studies suggest that the bio-SCR technique with adequate lateral fixation in the footprint appears to restore shoulder stability in irreparable massive cuff ruptures, thanks to its capacity to center the humeral head in the glenoid cavity.

Lädermann et al.⁽⁶⁰⁾, in a retrospective study, compared the early clinical outcomes in patients subjected to arthroscopic SCR with different types of grafts (acellular dermis versus long head of the biceps). The clinical scores in both groups were seen to improve after SCR in patients with irreparable rotator cuff ruptures, though there were fewer complications and revision surgeries with autograft versus the allograft. The authors concluded that if the long portion of the biceps is still in its place during surgery, its use seems to be valid, given the reasonable cost and the few associated complications.

Conclusions

The surgical management of patients with massive rotator cuff rupture remains a challenge. Detailed knowledge of the different therapeutic options and their indications is crucial for improving the functional outcomes in these patients. New surgical techniques have appeared in recent years, such as the subacromial balloon and SCR for the treatment of some of the patients with ruptures of this kind, though the results published to date are inconsistent and with low scientific evidence. For this reason, the authors, before recommending their generalized use, point to the need for comparative randomized prospective studies and publications with long term follow-up, demonstrating consistent good results over time, in order to help select the best technique for each individual patient, and to determine whether they will continue to play a role in the surgical management of irreparable massive cuff ruptures.
